Add New Robot

This guide explains how to add a new robot to SPIDER, covering both dexterous hands and humanoid robots.

Overview

Adding a new robot involves:

Converting/preparing robot model (URDF/MJCF)
Configuring default settings
Setting up collision geometry
Adding trace and tracking sites
Configuring actuators
Testing the integration

Prerequisites

Robot URDF or MJCF model
Basic understanding of MuJoCo XML format
Robot specifications (joint limits, actuator parameters)

Add Dexterous Hand

Step 1: Convert URDF to MJCF (Optional)

If you have a URDF file, convert it to MuJoCo XML:

xml

<!-- Add this snippet to your URDF before conversion -->
<mujoco>
  <compiler meshdir="assets" balanceinertia="true" discardvisual="false"/>
</mujoco>

Then use MuJoCo's compiler:

bash

# Using MuJoCo command-line tool
python -c "import mujoco; mujoco.MjModel.from_xml_path('robot.urdf').save('robot.xml')"

Step 2: Add Default Settings

Add default simulation parameters to your XML:

xml

<default>
  <!-- Disable all contacts by default, use explicit collision pairs -->
  <geom density="800" condim="1" contype="0" conaffinity="0" />

  <!-- Position controller settings (response time ~1s) -->
  <position kp="300" dampratio="1.0" inheritrange="1" />

  <!-- Joint dynamics -->
  <joint damping="0.0" armature="1.0" frictionloss="0.0" />

  <!-- Trace sites for visualization -->
  <site size="0.01" type="sphere" rgba="1 0 0 1" group="3" />
</default>

Parameter explanations:

density="800": Material density (kg/m³)
kp="300": Position controller stiffness
dampratio="1.0": Critical damping
armature="1.0": Joint inertia

Step 3: Add Assets

Include textures and materials:

xml

<asset>
  <!-- Skybox texture -->
  <texture type="skybox" builtin="gradient"
           rgb1="0.3 0.5 0.7" rgb2="0 0 0"
           width="512" height="3072" />

  <!-- Ground plane texture -->
  <texture type="2d" name="left_groundplane" builtin="checker"
           mark="edge" rgb1="0.2 0.3 0.4" rgb2="0.1 0.2 0.3"
           markrgb="0.8 0.8 0.8" width="300" height="300" />

  <!-- Ground material -->
  <material name="left_groundplane" texture="left_groundplane"
            texuniform="true" texrepeat="5 5" reflectance="0.2" />
</asset>

<!-- Camera for tracking -->
<camera name="left_track" pos="0.868 -0.348 -0.175"
        xyaxes="0.037 0.999 -0.000 0.011 -0.000 1.000" />

Step 4: Clean Up Joint Properties

Remove incompatible joint properties from the URDF-converted file:

xml

<!-- Remove these attributes from joints: -->
<!-- actuatorfrcrange, damping, frictionloss, armature, etc. -->

<!-- Before: -->
<joint name="finger_joint" damping="0.1" armature="0.01" ... />

<!-- After: -->
<joint name="finger_joint" ... />
<!-- Dynamics are now inherited from <default> section -->

Step 5: Rename Bodies and Geoms

Change mesh names to avoid conflicts (especially for bimanual setups):

xml

<!-- Left hand bodies should start with "left_" -->
<body name="left_palm">
  <geom name="left_palm_visual" type="mesh" mesh="left_palm_mesh" />
</body>

<!-- Right hand bodies should start with "right_" -->
<body name="right_palm">
  <geom name="right_palm_visual" type="mesh" mesh="right_palm_mesh" />
</body>

Naming Convention

Bodies: {side}_{finger}_{part} (e.g., left_index_proximal)
Visual geoms: {side}_{name}_visual
Collision geoms: collision_hand_{side}_{finger}_{part}

Step 6: Add Collision Geometry

Create simplified collision geometry using primitives:

xml

<body name="left_index_tip">
  <!-- Visual mesh -->
  <geom name="left_index_tip_visual" type="mesh" mesh="index_tip"
        contype="0" conaffinity="0" group="0" />

  <!-- Collision geometry (capsule primitive) -->
  <geom name="collision_hand_left_index_0" type="capsule"
        size="0.008 0.015" pos="0.015 0 0" quat="0.707 0 0.707 0"
        contype="1" conaffinity="1" group="3" rgba="0 1 0 1" />
</body>

Naming convention for collision geoms:

collision_hand_{side}_{finger}_{part}

Where:

side: left or right
finger: thumb, index, middle, ring, pinky, palm
part: 0, 1, 2, 3, ... (from tip to base)

Collision geom guidelines:

Use primitives (box, sphere, cylinder, capsule) instead of meshes
Set group="3" for collision geoms
Set rgba="0 1 0 1" (green) for visibility
Keep collision geoms simple for performance

Step 7: Add Trace Sites

Add trace sites for fingertip visualization:

xml

<body name="left_thumb_tip">
  <!-- Trace site (for trajectory recording) -->
  <site name="trace_hand_left_thumb_tip" pos="0.02 0 0"
        size="0.005" type="sphere" rgba="1 0 0 1" group="3" />
</body>

<body name="left_index_tip">
  <site name="trace_hand_left_index_tip" pos="0.02 0 0"
        size="0.005" type="sphere" rgba="1 0 0 1" group="3" />
</body>

<!-- Repeat for middle, ring, pinky -->

Naming convention: trace_hand_{side}_{finger}_tip

Step 8: Add Tracking Sites

Add tracking sites for end-effector control:

xml

<body name="left_palm">
  <site name="left_palm" pos="0 0 0"
        euler="0 0 0" size="0.01" type="sphere" rgba="1 1 0 1" group="3" />
</body>

<body name="left_thumb_tip">
  <site name="left_thumb_tip" pos="0.02 0 0"
        size="0.01" type="sphere" rgba="0 1 1 1" group="3" />
</body>

<!-- Repeat for all fingertips -->

Required sites:

{side}_palm: Palm center with proper orientation
{side}_thumb_tip, {side}_index_tip, {side}_middle_tip
{side}_ring_tip, {side}_pinky_tip

Palm site orientation:

Z-axis: pointing forward (finger direction)
X-axis: pointing down (toward ground)

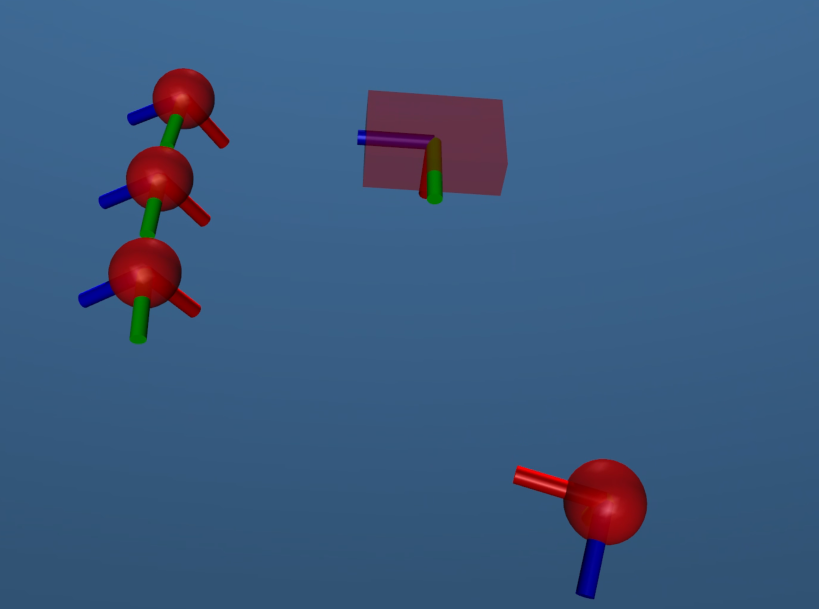

Base Definition

Step 9: Add Actuators

Define position actuators for all joints:

xml

<actuator>
  <!-- Base DOFs (for free-floating hand) -->
  <position name="left_pos_x_position" joint="left_pos_x" kp="1000" />
  <position name="left_pos_y_position" joint="left_pos_y" kp="1000" />
  <position name="left_pos_z_position" joint="left_pos_z" kp="1000" />
  <position name="left_rot_x_position" joint="left_rot_x" kp="1000" />
  <position name="left_rot_y_position" joint="left_rot_y" kp="1000" />
  <position name="left_rot_z_position" joint="left_rot_z" kp="1000" />

  <!-- Thumb joints -->
  <position name="left_thumb_proximal_yaw_position"
            joint="left_thumb_proximal_yaw_joint" />
  <position name="left_thumb_proximal_pitch_position"
            joint="left_thumb_proximal_pitch_joint" />
  <position name="left_thumb_intermediate_position"
            joint="left_thumb_intermediate_joint" />
  <position name="left_thumb_distal_position"
            joint="left_thumb_distal_joint" />

  <!-- Index finger joints -->
  <position name="left_index_proximal_position"
            joint="left_index_proximal_joint" />
  <position name="left_index_intermediate_position"
            joint="left_index_intermediate_joint" />

  <!-- Repeat for middle, ring, pinky -->
</actuator>

Important notes:

Base DOFs use higher kp (e.g., 1000) for stability
Finger joints inherit kp from <default> section
Actuator order must match joint order (SPIDER uses joint positions as control)

Step 10: Example Complete Hand XML

Here's a minimal example structure:

xml

<mujoco model="my_hand">
  <compiler angle="radian" meshdir="assets" autolimits="true"/>

  <option timestep="0.01" iterations="6" solver="CG" jacobian="auto">
    <flag eulerdamp="disable" />
  </option>

  <default>
    <geom density="800" condim="1" contype="0" conaffinity="0" />
    <position kp="300" dampratio="1.0" inheritrange="1" />
    <joint damping="0.0" armature="1.0" frictionloss="0.0" />
    <site size="0.01" type="sphere" rgba="1 0 0 1" group="3" />
  </default>

  <asset>
    <!-- Textures and materials -->
    <texture type="skybox" builtin="gradient" rgb1="0.3 0.5 0.7" rgb2="0 0 0" width="512" height="3072" />
    <material name="metal" rgba="0.7 0.7 0.7 1" />

    <!-- Meshes -->
    <mesh name="left_palm_mesh" file="meshes/palm.obj" />
    <mesh name="left_thumb_tip_mesh" file="meshes/thumb_tip.obj" />
    <!-- ... more meshes -->
  </asset>

  <worldbody>
    <geom name="floor" type="plane" size="0 0 0.05" material="groundplane"/>
    <light pos="0 0 3" dir="0 0 -1" directional="true"/>

    <!-- Hand body -->
    <body name="left_hand" pos="0 0 0.2">
      <!-- Base free joint for 6-DOF -->
      <freejoint name="left_base_joint"/>

      <!-- Palm -->
      <body name="left_palm">
        <geom name="left_palm_visual" type="mesh" mesh="left_palm_mesh" />
        <geom name="collision_hand_left_palm_0" type="box" size="0.04 0.03 0.01" />
        <site name="left_palm" pos="0 0 0" euler="0 0 0"/>

        <!-- Thumb -->
        <body name="left_thumb_proximal">
          <joint name="left_thumb_proximal_yaw_joint" axis="0 0 1" range="-0.5 0.5"/>
          <joint name="left_thumb_proximal_pitch_joint" axis="0 1 0" range="-0.2 1.0"/>
          <!-- ... thumb links ... -->
          <body name="left_thumb_tip">
            <site name="left_thumb_tip" pos="0.02 0 0"/>
            <site name="trace_hand_left_thumb_tip" pos="0.02 0 0"/>
          </body>
        </body>

        <!-- Index, middle, ring, pinky similar structure -->
      </body>
    </body>
  </worldbody>

  <actuator>
    <position name="left_pos_x_position" joint="left_pos_x" kp="1000"/>
    <!-- ... all actuators ... -->
  </actuator>

  <contact>
    <!-- Define collision pairs if needed -->
  </contact>
</mujoco>

Add Humanoid Robot

Humanoid robots have similar requirements but with additional considerations.

Step 1: Performance Optimization

Reduce solver iterations for faster simulation:

xml

<option timestep="0.02" iterations="2" ls_iterations="10">
  <flag eulerdamp="disable" />
</option>

<visual>
  <global azimuth="135" elevation="-25" offwidth="1920" offheight="1080" />
  <quality shadowsize="8192" />
  <headlight ambient="0.3 0.3 0.3" diffuse="0.6 0.6 0.6" specular="0 0 0" />
  <scale forcewidth="0.25" contactwidth="0.4" contactheight="0.15"
         framelength="5" framewidth="0.3" />
  <rgba haze="0.15 0.25 0.35 1" force="1 0 0 1" />
</visual>

<custom>
  <numeric data="15" name="max_contact_points" />
  <numeric data="15" name="max_geom_pairs" />
</custom>

Step 2: Default Settings

xml

<default>
  <!-- Disable all contacts by default -->
  <geom contype="0" conaffinity="0" />

  <!-- Position controller (stronger for humanoid) -->
  <position kp="500" dampratio="1" inheritrange="1" />

  <!-- Joint dynamics -->
  <joint damping="0.0" armature="1.0" frictionloss="0.0" />
</default>

Step 3: Add Collision Geoms for Feet

Add collision spheres to feet (4 contact points per foot):

xml

<body name="left_foot">
  <!-- Visual mesh -->
  <geom name="left_foot_visual" type="mesh" mesh="left_foot_mesh"
        contype="0" conaffinity="0"/>

  <!-- Collision spheres -->
  <geom name="lf0" type="sphere" size="0.02" pos="-0.05 0.025 -0.03"
        priority="1" friction="2.0" condim="3" />
  <geom name="lf1" type="sphere" size="0.02" pos="-0.05 -0.025 -0.03"
        priority="1" friction="2.0" condim="3" />
  <geom name="lf2" type="sphere" size="0.02" pos="0.12 0.03 -0.03"
        priority="1" friction="2.0" condim="3" />
  <geom name="lf3" type="sphere" size="0.02" pos="0.12 -0.03 -0.03"
        priority="1" friction="2.0" condim="3" />
</body>

<!-- Similar for right foot: rf0, rf1, rf2, rf3 -->

Step 4: Add Collision Geoms for Hands

xml

<body name="left_hand">
  <!-- Visual mesh -->
  <geom name="left_hand_visual" type="mesh" mesh="left_hand_mesh"
        contype="0" conaffinity="0"/>

  <!-- Collision sphere -->
  <geom name="lh" type="sphere" size="0.05" pos="0.1 0.0 0.0" />
</body>

<!-- Similar for right hand: rh -->

Step 5: Add Trace Sites

xml

<body name="pelvis">
  <site name="trace_pelvis" size="0.01" pos="0 0 0" />
</body>

<body name="left_foot">
  <site name="trace_left_foot" size="0.01" pos="0 0 0" />
</body>

<body name="right_foot">
  <site name="trace_right_foot" size="0.01" pos="0 0 0" />
</body>

<body name="left_hand">
  <site name="trace_left_hand" size="0.01" pos="0 0 0" />
</body>

<body name="right_hand">
  <site name="trace_right_hand" size="0.01" pos="0 0 0" />
</body>

Step 6: Add Contact Pairs

Define explicit contact pairs:

xml

<contact>
  <!-- Left foot contacts -->
  <pair name="left_foot_floor0" geom1="lf0" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />
  <pair name="left_foot_floor1" geom1="lf1" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />
  <pair name="left_foot_floor2" geom1="lf2" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />
  <pair name="left_foot_floor3" geom1="lf3" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />

  <!-- Right foot contacts -->
  <pair name="right_foot_floor0" geom1="rf0" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />
  <pair name="right_foot_floor1" geom1="rf1" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />
  <pair name="right_foot_floor2" geom1="rf2" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />
  <pair name="right_foot_floor3" geom1="rf3" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />

  <!-- Hand contacts -->
  <pair name="left_hand_floor" geom1="lh" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />
  <pair name="right_hand_floor" geom1="rh" geom2="floor"
        solref="0.008 1" friction="1 1" condim="3" />
</contact>

Step 7: Use Position Actuators

xml

<actuator>
  <!-- Legs -->
  <position name="left_hip_pitch" joint="left_hip_pitch_joint" />
  <position name="left_hip_roll" joint="left_hip_roll_joint" />
  <position name="left_hip_yaw" joint="left_hip_yaw_joint" />
  <position name="left_knee" joint="left_knee_joint" />
  <position name="left_ankle_pitch" joint="left_ankle_pitch_joint" />
  <position name="left_ankle_roll" joint="left_ankle_roll_joint" />

  <!-- Arms -->
  <position name="left_shoulder_pitch" joint="left_shoulder_pitch_joint" />
  <position name="left_shoulder_roll" joint="left_shoulder_roll_joint" />
  <position name="left_elbow" joint="left_elbow_joint" />
  <!-- ... -->

  <!-- Repeat for right side -->
</actuator>

Important

Actuator order must match joint order in the model definition!

Step 8: Setup Scene

Add white background and tracking camera:

xml

<statistic center="1.0 0.7 1.0" extent="0.8"/>

<asset>
  <!-- White skybox -->
  <texture type="skybox" builtin="flat" rgb1="1 1 1" rgb2="1 1 1"
           width="800" height="800"/>

  <!-- White groundplane -->
  <texture type="2d" name="groundplane" builtin="checker" mark="edge"
           rgb1="1 1 1" rgb2="1 1 1" markrgb="1 1 1"
           width="300" height="300"/>
  <material name="groundplane" texture="groundplane" texuniform="true"
            texrepeat="5 5" reflectance="0"/>
</asset>

<worldbody>
  <!-- Floor -->
  <geom name="floor" size="0 0 0.01" type="plane" material="groundplane"
        contype="1" conaffinity="0" priority="1" friction="0.6" condim="3"/>

  <!-- Directional light -->
  <light pos="0 0 5" dir="0 0 -1" type="directional"/>

  <!-- Tracking camera -->
  <camera name="track" pos="1.734 -1.135 .35"
          xyaxes="0.552 0.834 -0.000 -0.170 0.112 0.979"
          mode="trackcom"/>
</worldbody>

Testing Your Robot

Step 1: Visualize in MuJoCo

python

import mujoco
import mujoco.viewer

# Load model
model = mujoco.MjModel.from_xml_path('my_robot.xml')
data = mujoco.MjData(model)

# Launch viewer
mujoco.viewer.launch(model, data)

Check:

[ ] Model loads without errors
[ ] All joints move freely
[ ] Collision geometry looks correct (green geoms)
[ ] Trace sites are visible
[ ] Tracking sites are positioned correctly

Step 2: Test with SPIDER

Create a simple test scene:

bash

# Test IK (for hands)
uv run spider/preprocess/ik.py \
  --robot-type=my_hand \
  --task=test_task \
  --dataset-name=test \
  --data-id=0 \
  --embodiment-type=right

# Test physics optimization
uv run examples/run_mjwp.py \
  robot_type=my_hand \
  task=test_task \
  max_sim_steps=100

Step 3: Verify Output

Check that:

[ ] Trajectory is saved successfully
[ ] Joint positions are within limits
[ ] No collision warnings
[ ] Video renders correctly

Common Issues

Issue 1: Model Doesn't Load

Error: XML parse error

Solutions:

Check XML syntax
Validate with MuJoCo's simulate tool
Remove incompatible URDF attributes

Issue 2: Unstable Simulation

Symptoms: Robot falls through floor, explodes

Solutions:

xml

<!-- Increase solver iterations -->
<option iterations="10" ls_iterations="20"/>

<!-- Add more collision points -->
<!-- Adjust contact parameters -->
<pair solref="0.01 1" friction="2 2"/>

<!-- Check mass distribution -->
<!-- Ensure reasonable inertia values -->

Issue 3: Actuators Don't Work

Symptoms: Robot doesn't move

Solutions:

Check actuator names match joint names
Verify kp values are reasonable (100-1000)
Ensure joints have proper ranges
Check actuator order matches joint order

Issue 4: Poor IK Results

Symptoms: IK fails or produces bad poses

Solutions:

Check tracking site orientations (especially palm)
Verify joint limits are correct
Add more trace sites for debugging
Tune IK weights in config

Robot Configuration Files

Directory Structure

spider/assets/robots/
├── my_hand/
│   ├── left.xml          # Left hand only
│   ├── right.xml         # Right hand only
│   ├── bimanual.xml      # Both hands
│   ├── meshes/
│   │   ├── palm.obj
│   │   ├── thumb_tip.obj
│   │   └── ...
│   └── textures/
│       └── hand_texture.png

Register Robot

Add robot to SPIDER's config:

python

# In spider/config.py or appropriate config file

ROBOT_TYPES = {
    "allegro": "spider/assets/robots/allegro",
    "inspire": "spider/assets/robots/inspire",
    "my_hand": "spider/assets/robots/my_hand",  # Add your robot
    # ...
}

Next Steps

After adding your robot:

Test thoroughly with multiple tasks
Document robot-specific parameters
Tune IK and optimization parameters
Share your robot configuration (PR welcome!)

Add New Robot ​

Overview ​

Prerequisites ​

Add Dexterous Hand ​

Step 1: Convert URDF to MJCF (Optional) ​

Step 2: Add Default Settings ​

Step 3: Add Assets ​

Step 4: Clean Up Joint Properties ​

Step 5: Rename Bodies and Geoms ​

Step 6: Add Collision Geometry ​

Step 7: Add Trace Sites ​

Step 8: Add Tracking Sites ​

Step 9: Add Actuators ​

Step 10: Example Complete Hand XML ​

Add Humanoid Robot ​

Step 1: Performance Optimization ​

Step 2: Default Settings ​

Step 3: Add Collision Geoms for Feet ​

Step 4: Add Collision Geoms for Hands ​

Step 5: Add Trace Sites ​

Step 6: Add Contact Pairs ​

Step 7: Use Position Actuators ​

Step 8: Setup Scene ​

Testing Your Robot ​

Step 1: Visualize in MuJoCo ​

Step 2: Test with SPIDER ​

Step 3: Verify Output ​

Common Issues ​

Issue 1: Model Doesn't Load ​

Issue 2: Unstable Simulation ​

Issue 3: Actuators Don't Work ​

Issue 4: Poor IK Results ​

Robot Configuration Files ​

Directory Structure ​

Register Robot ​

Next Steps ​

Add New Robot

Overview

Prerequisites

Add Dexterous Hand

Step 1: Convert URDF to MJCF (Optional)

Step 2: Add Default Settings

Step 3: Add Assets

Step 4: Clean Up Joint Properties

Step 5: Rename Bodies and Geoms

Step 6: Add Collision Geometry

Step 7: Add Trace Sites

Step 8: Add Tracking Sites

Step 9: Add Actuators

Step 10: Example Complete Hand XML

Add Humanoid Robot

Step 1: Performance Optimization

Step 2: Default Settings

Step 3: Add Collision Geoms for Feet

Step 4: Add Collision Geoms for Hands

Step 5: Add Trace Sites

Step 6: Add Contact Pairs

Step 7: Use Position Actuators

Step 8: Setup Scene

Testing Your Robot

Step 1: Visualize in MuJoCo

Step 2: Test with SPIDER

Step 3: Verify Output

Common Issues

Issue 1: Model Doesn't Load

Issue 2: Unstable Simulation

Issue 3: Actuators Don't Work

Issue 4: Poor IK Results

Robot Configuration Files

Directory Structure

Register Robot

Next Steps
